The HI98161 is a rugged, waterproof, portable pH meter that measures pH and temperature using the specialized FC2023 Foodcare pH electrode. This professional, waterproof meter complies with IP67 standards. The HI98161 is supplied with all necessary accessories to perform a pH/temperature measurement packaged into a durable thermoformed carrying case that holds the meters, probes and calibration buffers securely in place.

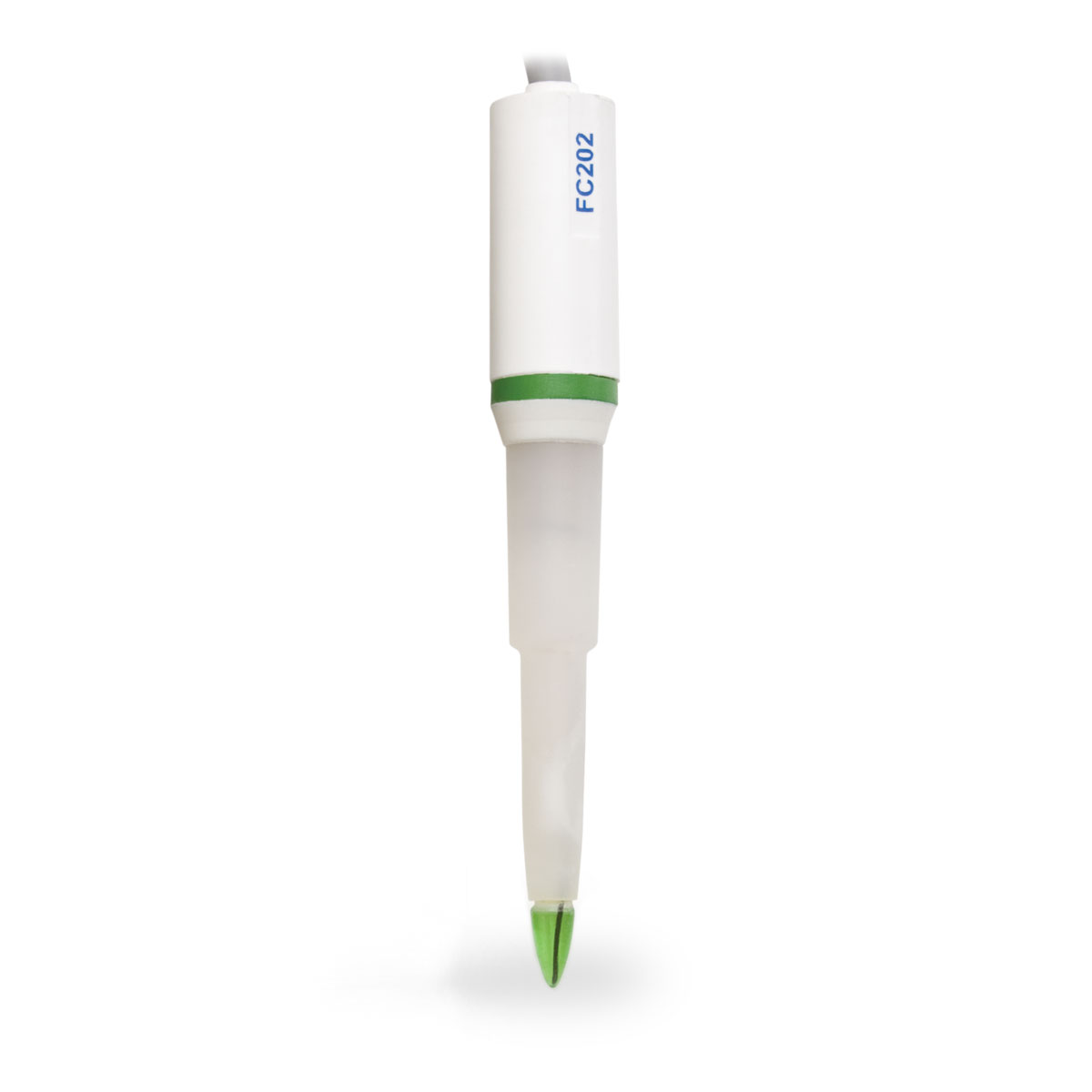

The FC2023 is the ideal electrode to measure the pH of milk, yogurt, meats, cheeses, fruit, sushi, rice, jams, jellies, dough, ice cream, yogurt, beverages, and juice.
Made from low-temperature glass, the conical shaped tip facilitates penetration of solids, semi-solids, and emulsions to directly measure pH in food products including meat, cheese, yogurt, and milk.
The open junction uses a solid gel interface (viscolene) between the sample and the internal Ag/AgCl reference, preventing silver from entering the sample, preventing clogging for a fast, stable reading.
Polyvinylidene fluoride (PVDF) is a food grade plastic that is resistant to most chemicals and solvents, as well as abrasion, fungal growth, and ultraviolet and nuclear radiation.
Setup screen
Our extensive setup screen features a host of configurable options such as time, date, temperature units, and language for help screens and guides.
Calibration
pH calibration features detailed CAL Check™ messages. Users are guided through the calibration procedure with step-by-step on-screen instructions.

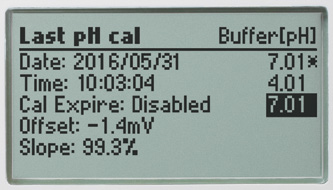

GLP
Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including date, time, offset, slope, and buffers used in the last calibration can be reviewed.
Contextual help at the press of a button
Five-point pH calibration with seven standard buffers and five custom buffers
Automatic Temperature Compensation (ATC)
Displays overall condition of the pH electrode after calibration based on the offset and slope characteristics
Calibration timeout to alert the user at a defined interval when the calibration has expired
AutoHold freezes displayed measurement reading when stable
GLP data including date, time, pH calibration buffers, offset, and slope
200 hour battery life with battery level displayed on measurement screen
PC connectivity via a sealed opto-isolated micro USB and HI92000 software
| SKU | HI98161 |
| Name | Professional Foodcare Portable pH Meter - HI98161 |
| pH Range | -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
| pH Resolution | 0.1 pH; 0.01 pH; 0.001 pH |
| pH Accuracy | ±0.1; ±0.002 pH |
| pH Calibration | up to five point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) + five custom buffers |
| pH CAL Check (electrode diagnostics) | Yes |
| pH Input impedence | 10¹² Ohms |
| mV Range | ±2000 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ±0.2 mV |
| Temperature Range | -20.0 to 120.0°C (-4.0 to 248.0°F) |
| Temperature Resolution | 0.1°C (0.1°F) |
| Temperature Accuracy | ±0.4°C (±0.8°F) (excluding probe error) |
| Temperature Compensation | manual or automatic from -20.0 to 120.0°C (-4.0 to 248.0°F) |
| pH Electrode | FC2023 Foodcare PVDF body, pH electrode with internal temperature sensor, quick connect DIN connector and 1 m (3.3’ cable) |
| Logging Memory | 200 samples (100 pH and 100 mV range) |
| Connectivity | opto-isolated USB with optional HI 92000 software and micro USB cable |
| Automatic Shut-Off | user selectable: 5, 10, 30, 60 min or can be disabled |
| GLP | Yes |
| Battery Type/Life | 1.5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) |
| Environment | 0 to 50°C (32 to 122°F); RH 100% (IP67) |
| Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) |
| Weight | 400gm |
HI98161 is supplied with FC2023 PVDF body pH electrode, HI7004M pH 4.01 buffer solution (230 mL), HI7007M pH 7.01 buffer solution (230 mL), HI700641 electrode cleaning solution for dairy products sachet (2), 100 mL plastic beaker (2), 1.5V AA batteries (4), HI92000 PC software, HI920015 micro USB cable, instruction manual with quick start guide, instrument quality certificate and HI720161 hard carrying case.
All prices are inclusive of GST and not all items are stock items, if you require an immediate solution please send an email to sales@hannainst.com.au or call us on (03) 9769 0666.
Free standard delivery: We offer free delivery within Australia on orders over $100, typically arriving within 5 to 7 days. Delivery times may vary depending on the courier service and the recipient's location. Free shipping is not available with other offers or discounts.
Same-day despatch: Place your order before 1 PM Monday to Friday for same-day despatch. Delivery times may vary depending on the courier service and the recipient's location. Subject to stock availability.
Please note that we do not offer shipping to PO Box addresses.
| Weight | 2.65 kg |
|---|---|
| Parameter | pH |
| pH Accuracy | ±0.1; ±0.002 pH |
| pH Calibration | 10.01, 12.45) + five custom buffers, 4.01, 6.86, 7.01, 9.18, seven standard buffers available (1.68, up to five point calibration |
| pH Range | -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
| pH Resolution | 0.1 pH; 0.01 pH; 0.001 pH |
| Temperature Accuracy | ±0.4°C (±0.8°F) (excluding probe error) |
| Temperature Range | -20.0 to 120.0°C (-4.0 to 248.0°F) |
