$362.21
Prices include GST. Not all items are in stock. Call 03 9769 0666 to confirm.
The HI12883 is a 3-in-1 pre-amplified multiparameter probe that measures pH, EC/TDS, and temperature within a single polypropylene body. The pH portion of this probe is constructed with a cloth junction, maintenance free polymer gel electrolyte, and a low temperature glass sensing bulb. The EC/TDS portion of this probe utilizes two graphite sensors for an amperometric determination of conductivity and total dissolved solids. A built-in temperature sensor ensures that both pH and EC/TDS readings are compensated for temperature variations in both standards and samples.
The design consideration for the HI12883 is ideal for measuring the pH, EC/TDS, and temperature in greenhouses, hydroponics, environmental monitoring, water treatment, wastewater treatemnt and boilers and cooling towers. The HI12883 is designed for use with Hanna’s HI991300 and HI991301 portable multiparameter meters.
Hanna Instruments offers a wide variety of electrodes that are designed for many different applications. The sensing material, body material, and connection type used are just some of the design considerations.
Pre-Amplified pH Electrode
The pH electrode circuit has a built-in amplifier that serves to reduce the effects of electrical noise on the high impedance pH measurement. Electrical noise can come from motors and pumps that are common in greenhouses. The single reference junction design of the pH electrode has a cloth junction that allows ion movement between the inner gel electrolyte and the sample being measured. The advantage of the cloth junction is that it can be extracted from the probe, exposing a fresh surface when readings become drifty or erratic. These features make this probe ideal for use in fertilizer solutions.
Amperometric EC/TDS Sensor
EC/TDS readings are performed by a two-pin amperometric sensor. An alternating voltage is applied to the sensor and the amount of current that passes between the two stainless steel pins determines the amount of dissolved ionic solids present.
Built-In Temperature Sensor
pH and EC/TDS readings must be temperature compensated in order to obtain accurate results. The built-in temperature sensor of the HI1288 provides a speedy temperature reading which is then used to adjust the pH and EC/TDS results accordingly.
Polypropylene Body

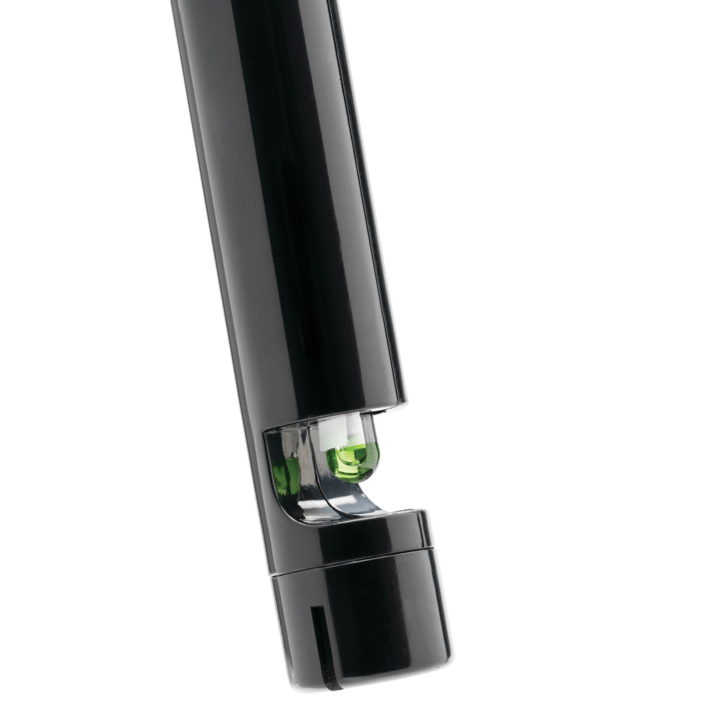

The polypropylene body of the HI12883 houses all three sensors within a sturdy, single body design. This body material is suitable for a wide range of applications and excels in measurements with portable meters due to its durability. The fins around the spherical glass pH bulb minimizes breakage due to accidental bumping or dropping of the electrode. The polypropylene plastic is a high quality plastic that is chemically resistant to many aggressive chemicals.
Quick Connect DIN Connector
The HI12883 uses a quick connect DIN connector. This type of connector is generally proprietary to the meters they are supplied with and may not be interchangeable. The HI1288 is made for use with Hanna’s HI991300 and HI991301 portable multiparameter meters.
| SKU | HI12883 |
| Name | HI12883 pH/EC/TDS Multiparameter Probe with Quick Connect DIN Connector |
| Reference Cell Type | HI12883 |
| Junction Type/Flow Rate | cloth |
| Type of Electrolyte | gel |
| Body Material | polypropylene |
| Glass Type | low temperature (LT) |
| Tip / Shape | spheric (8 mm) |
| Matching Pin | no |
| Max. Pressure | 0.1 bar |
| Optimum pH Range | 0 to 13 |
| Temperature Operating Range | 0 to 50°C (32 to 122°F) |
| Body Length/Overall Length | 95 mm / 185 mm |
| Temperature Sensor | yes |
| Outer Diameter | 16 mm |
| Cable | 7-pole; 1 m (3.3 in.) |
| Connector Type | quick connect DIN connector |
| Amplifier | yes |
| Recommended Use | General purpose, water treatment, agriculture, boilers, cooling towers |
| Notes | To be used with HI991300 and HI991301 |
