$4,532.00
Prices include GST. Not all items are in stock. Call 03 9769 0666 to confirm.
The multiparameter pH, EC, turbidity and optical dissolved oxygen probe HI7698594 is designed for use with the HI98594. It features three colour coded screw type connectors that allow the meter to automatically recognise each sensor for fast setup and reliable measurements. The probe is fully waterproof and comes with a protective shield, making it well-suited for demanding field applications. Sensors can be replaced quickly and easily, reducing downtime and simplifying maintenance.
Fully Waterproof Design: Rated IP68, the HI7698594 probe is built for continuous submersion, providing reliable performance in wet and demanding environments.
Secure Quick Connect Interface: A digital Quick Connect DIN fitting ensures a fast, waterproof connection between the probe and the meter.
Interchangeable Colour Coded Sensors: Screw-in sensors can be replaced directly in the field. Each connector is colour-coded, making sensor identification and installation simple.
Automatic Sensor Detection: Connected sensors are instantly recognised by the meter. Unused ports are automatically disabled and do not appear in the display or settings.
Built In Temperature Compensation: An integrated temperature sensor automatically compensates pH, conductivity, and dissolved oxygen readings for accurate results.

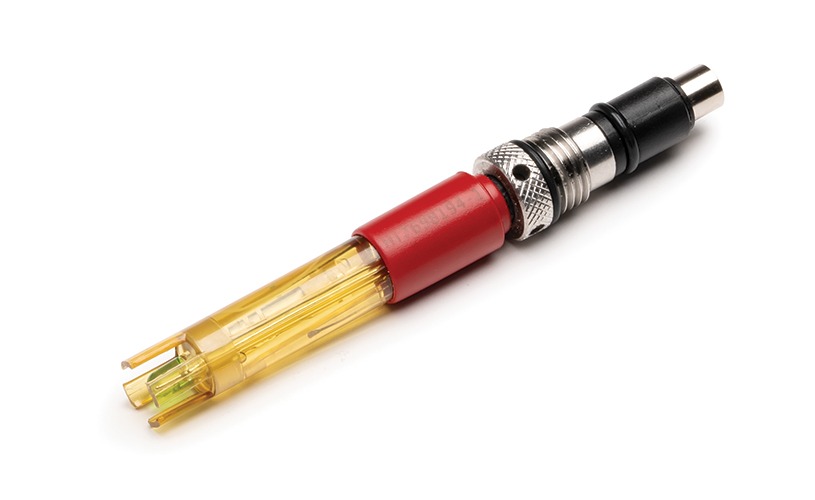

pH/ORP Sensor
The HI7698194-1 is a replaceable pH/ORP sensor for use with Hanna’s family of multiparameter portable meters and probes. Click here to know more.
Optical DO sensor
The HI7698594-5 Optical Dissolved Oxygen Sensor is a high-performance sensor designed for precise and reliable dissolved oxygen measurements. Click here to know more.
Conductivity and Turbidity Sensor
The HI7698594-4 is a combined conductivity and turbidity sensor for use with Hanna’s HI98594 Multiparameter Portable Meter. The sensor body is constructed of durable ABS and epoxy material. Click here to know more.
| Specification | Detail |
|---|---|
| SKU | HI7698594 |
| Sensor inputs | pH or pH/ORP EC/Turbidity Dissolved Oxygen |
| Sample environment | Fresh, brackish, seawater |
| Operating temperature | −5.0 to 50.0 °C 23.0 to 122.0 °F |
| Immersion depth | 20 m (66′ |
| Dimensions (without cable) | Length 342 mm (13.5in.) Diameter 46 mm (1.8in.) |
| Weight (with sensors) | 570 g (20.1 oz.) |
| Cable | Multistrandmulticonductor shielded cable with internal strength member rated for 90 kg (200 lbs) intermittent use |
| Wetted materials | Body ABS Threads Nylon Shield ABS and 316 stainless steel Temperature probe 316 stainless steel Orings EPDM (ethylene propylene diene monomer rubber) |
| Weight | 0.5 kg |
|---|---|
| Parameter | Conductivity/TDS, ORP, pH, Resistivity, Salinity |
