$1,067.00
Prices include GST. Not all items are in stock. Call 03 9769 0666 to confirm.
The HI97757 is an auto-diagnostic Ozone portable photometer that benefits from Hanna’s® years of experience as a manufacturer of analytical instruments. It has an advanced optical system that uses a Light Emitting Diode (LED) and a narrow band interference filter that allows for accurate and repeatable readings.
Features:
– Waterproof IP67, floating case
– Backlit LCD
– Sophisticated optical system
– Meter validation using certified
– CAL Check™ cuvettes
– Tutorial mode
– Auto logging
– GLP features
The HI97757 is a portable ozone photometer with auto-diagnostic capabilities, designed with Hanna Instruments®’ extensive expertise in developing high-quality analytical equipment. It features a sophisticated optical system that incorporates a Light Emitting Diode (LED) paired with a narrow band interference filter, delivering precise and consistent measurements.
To protect measurement integrity, the optical components are fully sealed against external contaminants like dust, moisture, and debris. The meter also includes a proprietary positive-locking mechanism that ensures cuvettes are consistently aligned in the holder for every test.
Equipped with CAL Check™ technology, users can verify instrument performance at any time and perform user calibration when needed. CAL Check standards are housed in cuvettes that are certified and traceable to NIST.
A built-in tutorial mode walks users through the entire testing procedure step by step, including sample preparation, reagent usage, and correct dosages.
The HI97757 measures ozone concentrations in water ranging from 0.00 to 2.00 mg/L (ppm), utilizing the DPD Colorimetric Method. Ozone is commonly used as a disinfectant in various water treatment applications, including drinking water, wastewater, and swimming pools.
|
Ozone |
Range |
0.00 to 2.00 mg/L (as O₃) |
|
Resolution |
0.01 mg/L |
|
|
Accuracy |
±0.02 mg/L ±3% of reading at 25 °C |
|
|
Method |
DPD Colorimetric Method |
|
|
Measurement system |
Light source |
Light Emitting Diode |
|
Bandpass filter |
525 nm |
|
|
Bandpass filter bandwidth |
8 nm |
|
|
Bandpass filter wavelength accuracy |
±1.0 nm |
|
|
Light detector |
Silicon photocell |
|
|
Cuvette type |
Round 24.6 mm diameter (22 mm inside) |
|
|
Additional specifications |
Auto logging |
50 readings |
|
Display |
128×64 pixel B/W LCD with backlight |
|
|
Auto-off |
After 15 minutes of inactivity (30 minutes before a Read measurement) |
|
|
Battery type |
1.5 V AA Alkaline (3 pcs.) |
|
|
Battery life |
>800 measurements (without backlight) |
|
|
Environment |
0 to 50 °C (32 to 122 °F); 0 to 100% RH, non-serviceable |
|
|
Dimensions |
142.5×102.5×50.5 mm (5.6×4.0×2.0″) |
|
|
Weight (with batteries) |
380 g (13.4 oz.) |
|
|
Case ingress protection rating |
IP67, floating case |

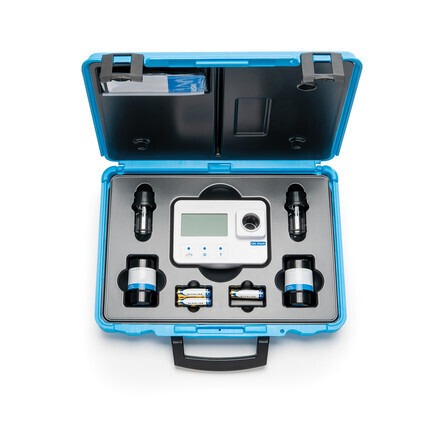

What’s included:
HI97757-11 CAL Check™ Standards for Ozone
HI93757-01 Ozone Reagent – 100 tests
HI93757-03 Ozone Reagent – 300 tests
HI93703-52 Glycine Powder Reagent – 100 tests
HI7101412 HI97 series blue carrying case with 2 cuvette slots
HI731318 Cloth for wiping cuvettes (4 pcs.)
HI731331 Glass cuvette (4 pcs.)
HI731336N Cap for glass cuvette (4 pcs.)
HI731360 Glass cuvette with cap (2 pcs.)
HI93703-50 Cuvette cleaning solution (250 mL)
| Weight | 0.380 kg |
|---|---|
| Parameter | Conductivity/TDS, ORP, pH, Resistivity, Salinity, Temperature |
