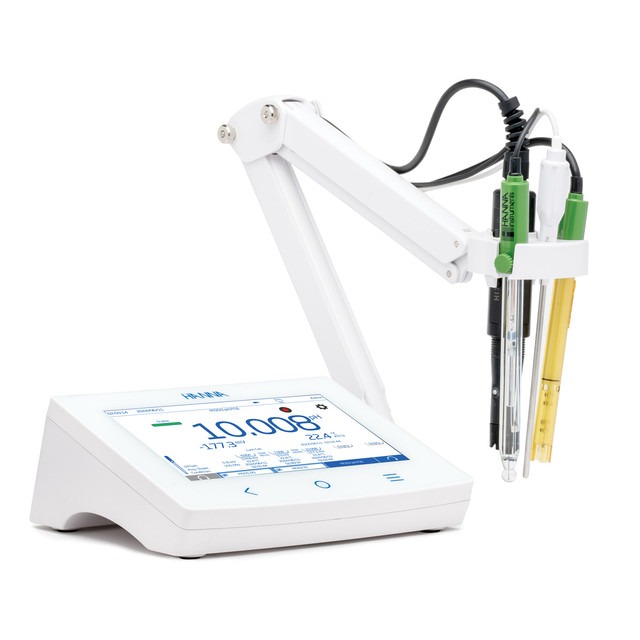

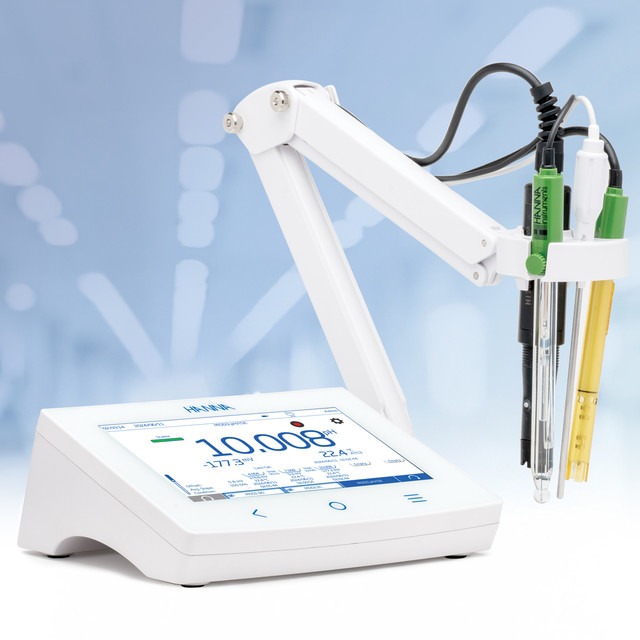

Start testing with confidence using the HI6553 Benchtop Meter Starter Kit, designed for pH, ORP, ISE, EC, TDS, and dissolved oxygen measurements. Choose between the opdo® optical DO probe kit or the traditional polarographic DO probe kit to suit your application.
This complete system arrives fully equipped with the required modules, electrodes, and solutions, so you can begin measuring straight away. It delivers dependable, repeatable results, streamlined digital data logging for better traceability, and user-friendly navigation with built-in help and tutorials.
A versatile solution for laboratories, research facilities, education, food and beverage production, and metal finishing environments.

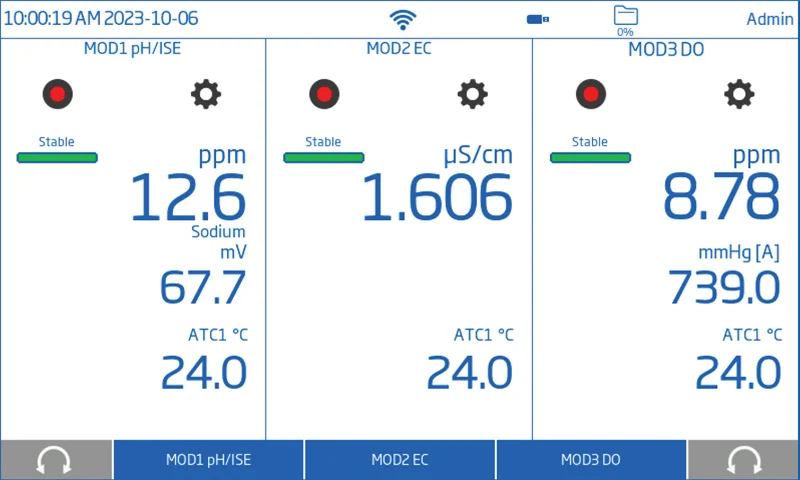

Up to 3 measurements can be shown on the benchtop screen at the same time. Various display configurations and formats are available and can be adjusted in settings.
Single-parameter screen

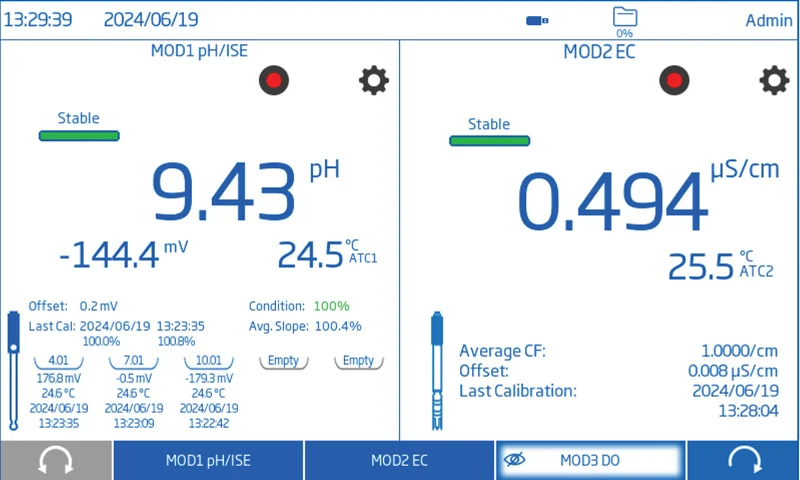

Dual-parameter screen
Together with appropriate electrodes, the meter provides highly accurate and reliable measurements for all laboratories.
Up to three measurement channels can be viewed simultaneously. Views can be mixed and matched. Data can be shown in basic form or in full detail, in a table or plotted as a graph.
The HI6000 Series allows for up to 5-point calibration for pH, ISE, and Conductivity for optimum results.
The HI6000 Series help you avoid errors caused by manual transcription of results, thanks to an incredible simple and flexible data management! The instrument can store up to 1,000,000 data points for each user.
Data can be shared via Wi-Fi, Ethernet, email, web server, USB flash drive or PC. No software required!

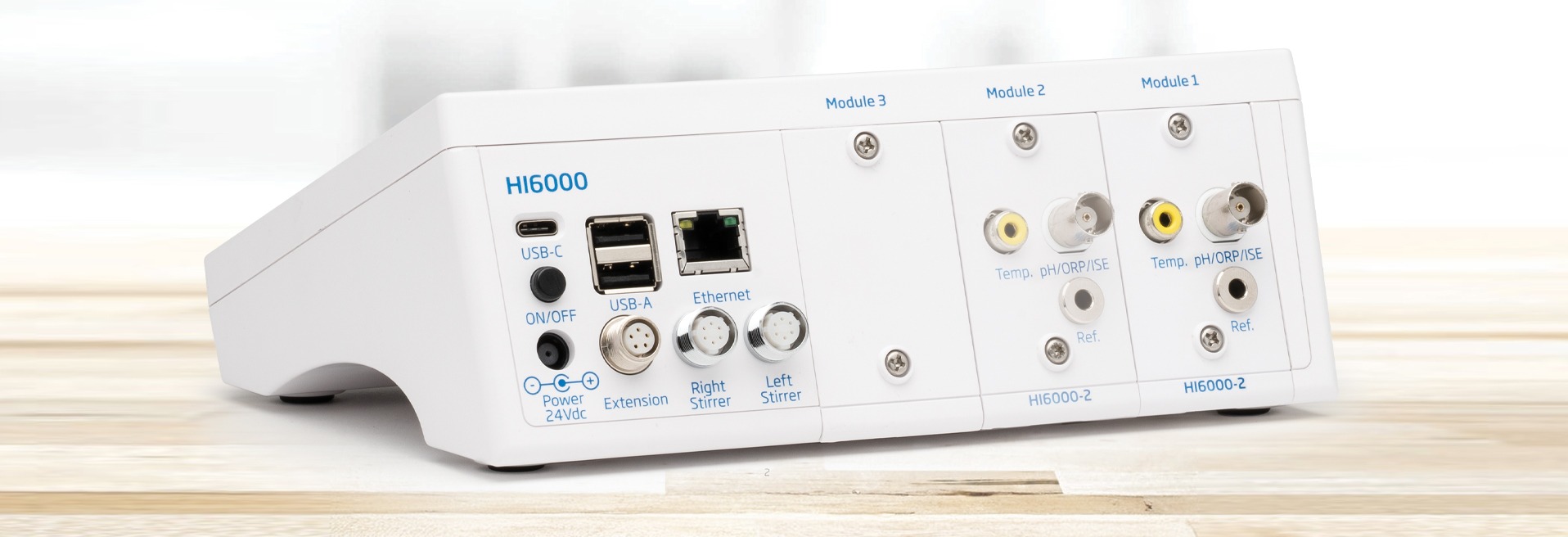

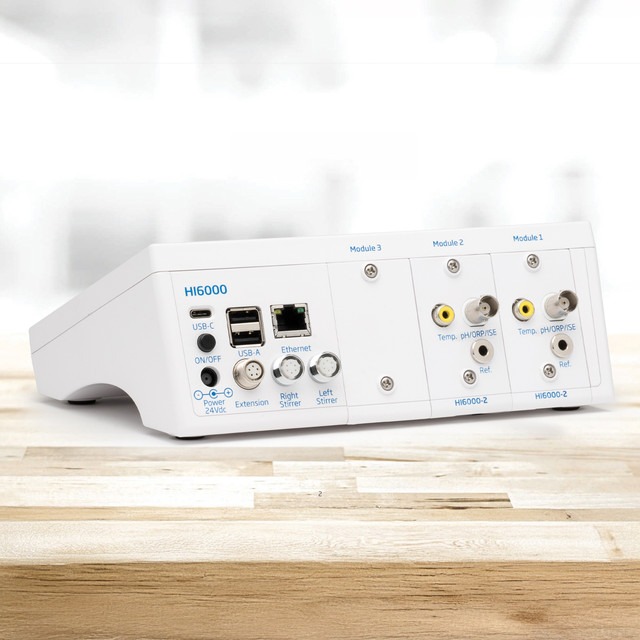

Conveniently connect a keyboard, a barcode scanner, a printer, or two stirrers to improve your workflow.
The HI6000 multiparameter features a user friendly design for effortless control and seamless simplicity. The benchtop unit has a large capacitive touch screen with multi-touch support.
The help menu supports you with an overview of the main functionalities through text and video tutorials for quick assistance.
User-friendly interface
10 user profiles
On-board help and video tutorials
| HI-6553-02 | pH/ORP/ISE + EC + Optical (opdo®) DO Kit | |
| Range | -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH | |
| Resolution | 0.1 pH; 0.01 pH; 0.001 pH | |
| Accuracy | ±0.1 pH; ±0.01 pH; ±0.002 pH (±1 last significant digit) | |
| Temperature Compensation | Automatic or manual | |
| mV | ||
| Range | -2000.0 mV to 2000.0 mV | |
| Resolution | 1 mV; 0.1 mV | |
| Accuracy | ±0.2 mV ±1 last significant digit | |
| ISE | ||
| Range | 1 x 10-6 to 9.99 x 1010 concentration | |
| Resolution | 1; 0.1; 0.01; 0.001 concentration | |
| Accuracy | ±0.5% (monovalent ions); ±1% (divalent ions) | |
| Calibration | Automatic, up to five-point calibration, seven fixed standard solutions available for each measurement unit, and five user defined standards | |
| Temperature | ||
| Range | -20.0 to 120.0 °C; -4.0 to 248.0 °F; 253.0 to 393.0 K | |
| Resolution | 0.1 °C / 0.1 °F / 0.1 K | |
| Accuracy | ±0.2 °C / ±0.4 °F / ±0.2 K | |
| Relative mV offset range | ±2000.0 mV | |
| pH Calibration | ||
| Calibration points | Up to 5 | |
| Type | Automatic; Semiautomatic; Manual | |
| Standard buffers | Hanna and NIST – pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 | |
| Custom buffers | Up to 5 | |
| Custom group | Up to 5 | |
| 1st calibration point | Offset or Points (user setting) | |
| Temperature User Calibration | Single point, adjustable; Isopotential point: -2.000 to 20.000pH |
| Conductivity | |
| Range | 0.000 to 9.999 μS/cm; 10.00 to 99.99 μS/cm; 100.0 to 999.9 μS/cm; 1.000 to 9.999 mS/cm; 10.00 to 99.99 mS/cm; 100.0 to 1000.0 mS/cm |
| Resolution | 0.001 μS/cm; 0.01 μS/cm; 0.1 μS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm |
| Accuracy | ±1 % of reading ±0.010 μS/cm, whichever is greater |
| Cell Constant | 0.0500 to 200.00 /cm |
| Calibration Type | automatic; manual |
| Calibration points | Single Multiple |
| Calibration solutions | 84.00 μS/cm, 1.413 mS/cm, 5.000 mS/cm, 12.88 mS/cm, 80.00 mS/cm, 111.8 mS/cm |
| Temperature Compensation | Linear, natural, standard, disabled |
| Reference Temperature | Range: 5.0 to 30.0˚C (41.0 to 86.0˚C Resolution 0.1˚C / 0.1˚F |
| Temperature Coefficient | 0.00 to 10.00%/˚C |
| Resistivity | |
| Range | 1.0 to 99.9 Ω・cm; 100 to 999 Ω・cm; 1.00 to 9.99 KΩ・cm; 10.0 to 99.9 KΩ・cm; 100 to 999 KΩ・cm; 1.00 to 9.99 MΩ・cm; 10.0 to 100.0 MΩ・cm |
| Resolution | 0.1 Ω・cm; 1 Ω・cm; 0.01 KΩ・cm; 0.1 KΩ・cm; 1 KΩ・cm; 0.01 MΩ・cm; 0.1 MΩ・cm |
| Accuracy | ±1 % of reading or ±1 Ω・cm, whichever is greater |
| Total Dissolved Solids (TDS) | |
| Range | 0.000 to 9.999 ppm; 10.00 to 99.99 ppm; 100.0 to 999.9 ppm; 1.000 to 9.999 ppt; 10.00 to 99.99 ppt; 100.0 to 400.0 ppt; actual TDS (with 1.00 factor) |
| Resolution | 0.001 ppm; 0.01 ppm; 0.1 ppm; 0.001 ppt; 0.01 ppt; 0.1 ppt |
| Accuracy | ±1 % of reading or ±0.01 ppm, whichever is greater |
| Salinity | |
| Range | 0.00 to 42.00 PSU – Practical Scale 0.00 to 80.00 ppt – Natural Sea Water 0.0 to 400.0 % – Percent Scale |
| Resolution | 0.01 for Practical Scale / Natural Sea Water 0.1 % for Percent Scale |
| Accuracy | ±1 % of reading |
| Calibration | 1 point for Percent Scale, using 100% salinity calibration solution |
| Temperature | |
| Range | −20.0 to 120.0 °C; -4.0 to 248.0˚F; 253.0 to 393.0 K |
| Resolution | 0.1 °C; 0.1 °F; 0.1 K |
| Accuracy | ±0.2 °C; ±0.4 °F; ±0.2 K |
| Calibration | Single point, adjustable |
| Dissolved Oxygen | ||
| Range | 0.00 to 90.00 mg/L (ppm) concentration; 0.0 to 600.0 % saturation | |
| Resolution | 0.01 mg/L (ppm); 0.1 % saturation | |
| Accuracy | Refer to individual specifications for probe used | |
| HI-7641133 DO Probe Specification | ||
| Probe Body Material | ABS | |
| Smart Cap™ material | Polypropylene | |
| Cable jacket material | PVC | |
| Cable Length | 1m | |
| probe guard | Stainless steel | |
| Temperature Measurement | Thermistor | |
| Pressure | 20m (29 PSI) | |
| Probe Dimensions with guard | 174 x 25mm | |
| Response Time | 45 seconds | |
| probe ingress protection rating | IP68 | |
| Sensor type | Optical; luminescence quenching |
The HI6553 is a preconfigured meter supplied complete with:
| Weight | 1.2 kg |
|---|
