$2,218.07
Prices include GST. Not all items are in stock. Call 03 9769 0666 to confirm.
HI981954 Pool Line Multiparameter Waterproof Portable pH/ORP/EC/Temperature meter is made for measuring key water quality parameters in swimming pool, hot tub, or spa water. This is an advanced meter uses a single weighted probe with multiple sensors to measure multiple parameters simultaneously and display results as pH, pH in mV, ORP, conductivity (EC), total dissolved solids (TDS), salinity, and temperature. The meter has a built-in pressure transducer for barometric pressure readings.
HI981954 Pool Line Multiparameter Waterproof Portable Temperature meter is a single tool that allows swimming pool, hot tub, and spa service technicians to measure key water quality parameters for both traditional and electrolytic saltwater pools. The auto-ranging conductivity/TDS readings can be used for low range readings to track the increase in chemicals as water evaporates from a pool and for the higher range measurement of salt required for the proper electrolysis of sodium chloride to produce chlorine.
The HI981954 can be used for both routine measurements and for process calibration in which the measurement information is then used to update the calibration of process pH, ORP and conductivity meters.
HI981954 offers many advanced features from a large dot matrix LCD that provides for an intuitive user interface in the operation of the meter, log on demand for storing readings, USB port for transferring data, and GLP data for tracking calibration data. The HI98195 has 5 sensors (pH, ORP, EC, temperature, barometric pressure) and 6 interpretative measurements (pH in mV, absolute conductivity, TDS, resistivity, salinity, seawater sigma). The HI981954 can display up to 11 parameters simultaneously on the large dot matrix LCD. The readings can be scaled in size based on the number of parameters (1 to 11) that are displayed.

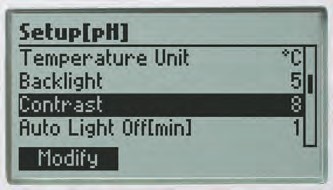

Setup Screen
Our extensive setup screen features a host of configurable options such as time, date, temperature units and language for help screens and guides.
Standard or Quick Calibration
Quick Calibration provides a speedy, single point calibration for pH and conductivity. Standard pH calibration options are available for calibrating up to three points from a selection of five standard buffers and one custom buffer. Conductivity calibration is a single point from six standard selections or one custom standard.

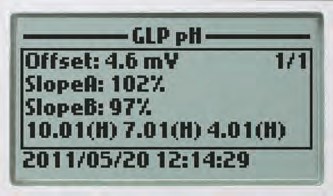

GLP
Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including date, time, and calibration values are stored with logged data for retrieval at a later time.
Ergonomic, rugged, waterproof (IP67) design
pH CAL Check™
Five point pH calibration with seven standard buffers and five custom buffers
Quick Calibration of pH and EC sensors with a single solution
Automatic Temperature Compensation
Log-on-demand
AutoHold
GLP features
Calibration timeout to alert the user at a defined interval when the calibration has expired
Multiple language selection
200-hour battery life with battery level displayed on measurement screen
Menu driven for ease of use with virtual-key extended functionality
Contextual help at the press of a button
Backlit, graphic LCD
Meter displays a clock tag that will disappear when the reading has achieved stability
Battery Error Prevention System (BEPS)
Connectivity
| SKU | HI981954 |
| Name | Pool Line Multiparameter Waterproof Portable pH/ ORP/EC/Temperature Meter - HI981954 |
| pH Range | 0.00 to 14.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ±0.02 pH |
| pH Calibration | automatic one, two, or three points with automatic recognition of five standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or one custom buffer |
| ORP Range | ±2000.0 mV |
| ORP Resolution | 0.1 mV |
| ORP Accuracy | ±1.0 mV |
| ORP Calibration | automatic at one custom point (relative mV) |
| mV Range | ±600.0 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ±0.5 mV |
| EC Range | 0 to 9999 µS/cm; 0.000 to 200.0 mS/cm (absolute EC up to 400.0 mS/cm) |
| EC Resolution | auto-ranging: 1 µS/cm from 0 to 9999 µS/cm; 0.01 mS/cm from 10.00 to 99.99 mS/cm; 0.1 mS/cm from 100.0 to 400.0 mS/cm; auto-ranging (fixed mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm; 0.01 from 100.0 to 400.0 mS/cm ; manual: 1 µS/cm; 0.001 mS/cm; 0.01 |
| EC Accuracy | ±1% of reading or ±1 µS/cm whichever is greater |
| EC Calibration | automatic single point, with six standard solutions (84 µS/cm, 1413 µS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) or custom point |
| TDS Range | 0 to 9999 ppm (mg/L); 0 to 400, 000 ppm (mg/L) (maximum value depends on TDS factor) |
| TDS Resolution | manual: 1 ppm (mg/L); 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L); 1 ppt (g/L); auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L); 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L); 0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L); auto-ranging (fixed ppt): |
| TDS Accuracy | ±1% of reading or ±1 ppm (mg/L), whichever is greater |
| TDS Calibration | based on conductivity or salinity calibration |
| Salinity (PSU) Range | 0.00 to 70.00 PSU |
| Salinity (PSU) Resolution | 0.01 PSU |
| Salinity (PSU) Accuracy | ±2% of reading or ±0.01 PSU whichever is greater |
| Salinity (PSU) Calibration | based on conductivity calibration |
| Salinity (Seawater Sigma) Range | 0.0 to 50.0 σt, σ₀, σ₁₅ |
| Salinity (Seawater Sigma) Resolution | 0.1 σt, σ₀, σ₁₅ |
| Salinity (Seawater Sigma) Accuracy | ±1 σt, σ₀, σ₁₅ |
| Salinity (Seawater Sigma) Calibration | based on conductivity or salinity calibration |
| Resistivity Range | 0 to 999999 Ω cm; 0 to 1000.0 kΩ cm; 0 to 1.0000 MΩ cm |
| Resistivity Resolution | dependent on resistivity reading |
| Resistivity Calibration | based on conductivity calibration |
| Temperature Range | -5.00 to 55.00 °C, 23.00 to 131.00 °F, 268.15 to 328.15 K |
| Temperature Resolution | 0.01 K, 0.01 °C, 0.01 °F |
| Temperature Accuracy | ±0.15 °C; ±0.27 °F; ±0.15 K |
| Temperature Calibration | automatic at one custom point |
| Temperature Compensation | automatic from -5 to 55 °C (23 to 131 °F) |
| Logging Memory | 45,000 records (continuous logging or log-on-demand of all parameters) |
| Logging Interval | one second to three hours |
| Connectivity | USB to PC with HI9298194 Hanna software installed |
| Battery Type/Life | 1.5V AA batteries (4) / approximately 360 hours of continuous use without backlight |
| Environment | 0 to 50°C (32 to 122°F); RH 100% (IP67) |
| Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) |
| Weight | 400 g (14.2 oz.) |
HI981954 is supplied with HI7698195 multiparameter probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC/TDS/Salinity/Resistivity sensor, HI9828-20 quick calibration solution (230 mL), HI7698295 protective probe shield, HI76981952 probe maintenance kit, HI7698290 calibration beaker, HI920015 micro USB cable, 1.5V AAA batteries (4 pcs.), instrument quality certificate, probe quality certificate, and instruction manual packaged in a rugged thermoformed carrying case.
All prices are inclusive of GST and not all items are stock items, if you require an immediate solution please send an email to sales@hannainst.com.au or call us on (03) 9769 0666.
Free standard delivery: We offer free delivery within Australia on orders over $150, typically arriving within 5 to 7 days. Delivery times may vary depending on the courier service and the recipient's location. Free shipping is not available with other offers or discounts.
Same-day despatch: Place your order before 1 PM Monday to Friday for same-day despatch (leaves our warehouse). Delivery times may vary depending on the courier service and the recipient's location. Subject to stock availability.
Please note that we do not offer shipping to PO Box addresses.
| Weight | 2.27 kg |
|---|---|
| Parameter | Conductivity/TDS, ORP, pH, Resistivity, Salinity |
| pH Accuracy | ±0.02 pH |
| pH Calibration | 10.01) or one custom buffer, 6.86, 7.01, 9.18, automatic one, or three points with automatic recognition of five standard buffers (pH 4.01, two |
| pH Range | 0.00 to 14.00 pH |
| pH Resolution | 0.01 pH |
| EC Accuracy | ±1% of reading or ±1 µS/cm whichever is greater |
| EC Calibration | 111.8 mS/cm) or custom point, 12.88 mS/cm, 1413 µS/cm, 5.00 mS/cm, 80.0 mS/cm, automatic single point, with six standard solutions (84 µS/cm |
| EC Range | 0 to 9999 µS/cm; 0.000 to 200.0 mS/cm (absolute EC up to 400.0 mS/cm) |
| TDS Accuracy | ±1% of reading or ±1 ppm (mg/L), whichever is greater |
| TDS Calibration | based on conductivity or salinity calibration |
| TDS Range | 0 to 9999 ppm (mg/L); 0 to 400, 000 ppm (mg/L) (maximum value depends on TDS factor) |
| Temperature Accuracy | ±0.15 °C; ±0.27 °F; ±0.15 K |
| Temperature Range | -5.00 to 55.00 °C, 23.00 to 131.00 °F, 268.15 to 328.15 K |
